تفاصيل المنتج:
|
| اسم: | شاشة TFT LCD مربعة مقاس 7.6 بوصة | دقة: | 1200 × 1200 |
|---|---|---|---|
| البعد المخطط التفصيلي: | 142.56 (H)*148.24 (V)*5.1 (D) | منطقة نشطة: | 135.36 (H) * 135.36 (V) |
| واجهة: | ميبي | زاوية المشاهدة: | 80/80/80/80 |
| سطوع: | 1000CD/M2 | وضع العرض: | عادة أسود |
| سائق آي سي: | ILI9881C | درجات حرارة التشغيل: | -20 ℃ ~ +70 ℃ |
| درجات حرارة التخزين: | -30 درجة مئوية ~ +80 درجة مئوية | لوحة اتش دي ام اي: | متاح |
| يلمس: | الكابتش متاح | ||
| إبراز: | 7.6 inch square TFT LCD display,MIPI interface HDMI display board,Raspberry Pi 5 compatible display,MIPI interface HDMI display board,Raspberry Pi 5 compatible display |
||

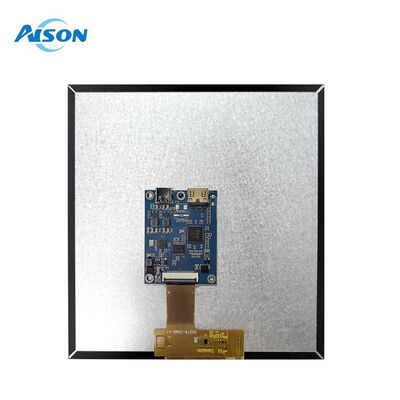

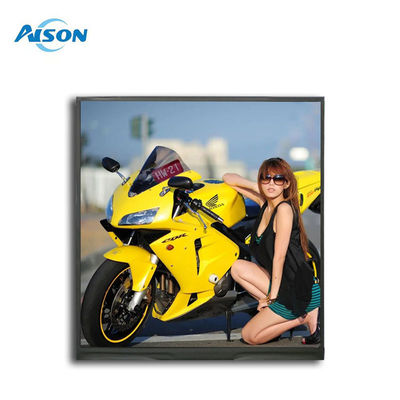

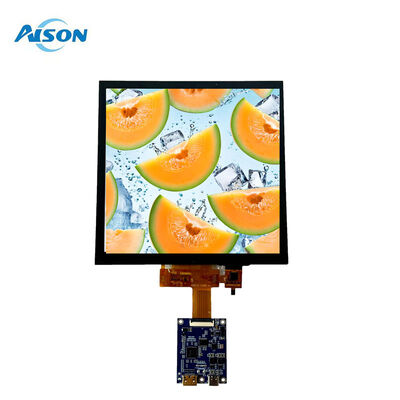

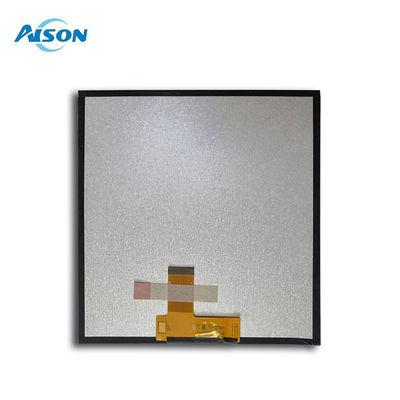

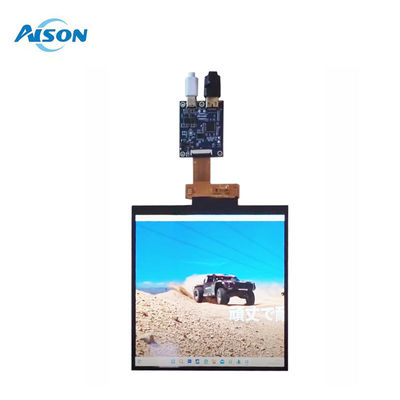

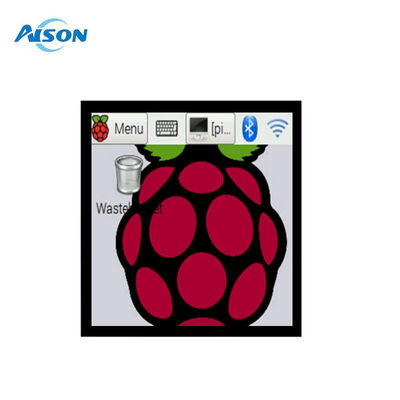

7.6 Inch 800x800 Square Display TFT LCD Display MIPI Interface With HDMI Driver Board for Raspberry Pi 5
This 7.6 inch square lcd module is equipped with the ILI9881C driver IC and supports MIPI interface.
It has a high 1200x1200 RGB pixel resolution on a black background, delivering an exceptional visual experience.
The module's high brightness 1000cd/m2 ensures clear visibility in various lighting conditions, providing optimal viewing comfort.
It can be operating at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.
General Data
|
Item
|
Specifications
|
|||
|
Type
|
Square
|
|||
|
Module Size
|
7.6 Inch
|
|||
|
Dimensional outline
|
142.56 (H)*148.24 (V)*5.1(D)
|
|||
|
Active area
|
135.36 (H)* 135.36 (V)
|
|||
|
Resolution
|
1200*1200
|
|||
|
Interface
|
MIPI
|
|||
|
Brightness
|
1000cd/m2
|
|||
|
Pixel pitch
|
36.5(H) x 109.5(V)
|
|||
|
Pixel Arrangement
|
RGB Vertical Stripe
|
|||
|
Driver IC
|
ILI9881C
|
|||
|
Display Color
|
16.7M
|
|||
|
Viewing direction
|
Normally Black
|
|||
|
Operating Temperature
|
-20°C ~ 70°C
|
|||
|
Storage Temperature
|
-30°C ~ 80°C
|
|||
Drawing
Product Details
TFT Applications
This square TFT LCD panel is particularly well-suited for industrial control systems, portable measurement instruments, outdoor display systems, and home automation panels.The 7.6 inch square form factor makes it a versatile display solution for a variety of compact and portable devices.
