تفاصيل المنتج:
|
| اسم: | وحدة شاشة LCD 2.99 بوصة | دقة: | 268 × 800 |
|---|---|---|---|
| الأبعاد الخطوط العريضة: | 26.96*80.08*1.72mm | منطقة نشطة: | 24.12*72mm |
| واجهة: | RGB 18bit+spi3w | زاوية مشاهدة: | 85/85/85/85 |
| سطوع: | 800 CD/M2 | عرض الاتجاه: | الكل/IPS |
| درجات حرارة التشغيل: | -20 إلى 70 درجة | درجات حرارة التخزين: | -30 إلى 80 درجة |
| إبراز: | 2.99 inch TFT bar display module,ST7701S TFT LCD driver IC,268RGB*800 bar type LCD,ST7701S TFT LCD driver IC,268RGB*800 bar type LCD |
||

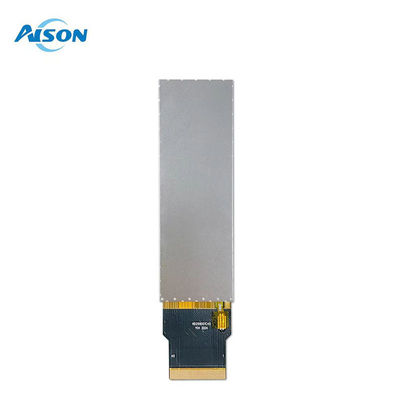

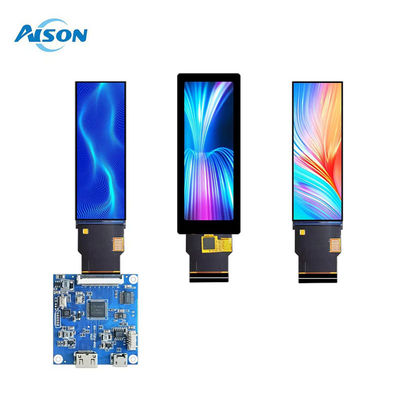

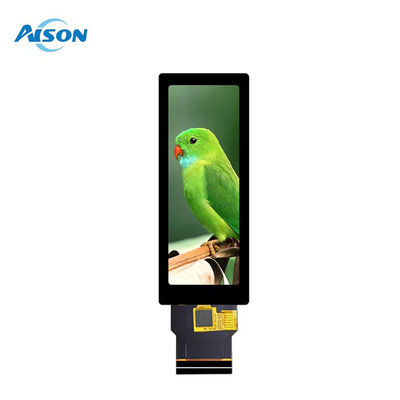

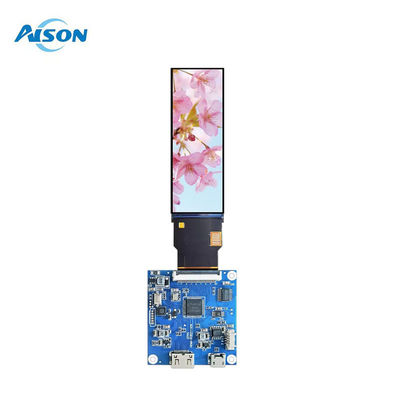

2.99 Inch TFT Bar Display Drive IC ST7701S 268RGB*800 TFT LCD Module
General Description
Z0299WV01is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. The resolution of 2.99" contains 268 RGB X800 pixels and can display up to 16.7m colors.
Key Features of the DBC030HVN40R035A Bar LCD Display:
- Screen Size and Resolution: 3-inch display with a resolution of 268 x 800 pixels, ensuring vivid and detailed visuals.
- Display Technology: a-Si TFT with 16.7 million colors, delivering sharp and clear images.
- Compact Design: Measures 26.96*80.08*1.72mm, fitting easily into small spaces.
- Interface: SPI+RGB compatibility, providing easy integration into various systems.
- LED Backlighting: Equipped with 6 LEDs for uniform brightness, rated to last over 35,000 hours.
- Operating Range: Withstands temperatures from -20°C to 70°C, making it suitable for harsh environments.
Applications:
The Bar LCD display is ideal for applications such as:
- Industrial control panels
- Automotive displays
- IoT devices
Technical Specifications:
- Contrast Ratio: High contrast of 1200:1 ensures excellent readability.
- Brightness: high brightness 800 nits, providing clear visibility in diverse lighting conditions.
- Wide Viewing Angles: 85° viewing from all directions, allowing flexibility in installation.
General Data
| Model Name | 2.99 inch Bar Type LCD Display |
| Resolution | 268x800 |
| Model Size (W*H*T)mm | 26.96*80.08*1.72mm |
| Display Area (W*H)mm | 24.12*72mm |
| Interface | RGB 18bit+SPI3W |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 800 cd/m2 |
| Pin number | 40 pin |
|
Contrast Ratio
|
1200:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
This bar type lcd module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc. This bar type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.
