تفاصيل المنتج:
|
| غرض: | شاشة إل سي دي 7 بوصة 1024X600 RGB TFT | دقة: | 1024x600 |
|---|---|---|---|
| الأبعاد الخطوط العريضة: | 164.9*100*5.1 مللي متر | منطقة نشطة: | 154.21 × 85.92 ملم |
| واجهة: | RGB | سطوع: | 400 شمعة / م 2 |
| نوع LCD: | TFT ، أسود عادةً ، معبر | درجات حرارة العمل: | -20 درجة إلى 70 درجة |
| درجات حرارة التخزين: | -30 درجة إلى 80 درجة | واجهة تعمل باللمس: | I2C |
| إبراز: | 7 inch IPS TFT LCD display,1024x600 capacitive touch screen,50 pin RGB LCD panel,1024x600 capacitive touch screen,50 pin RGB LCD panel |
||

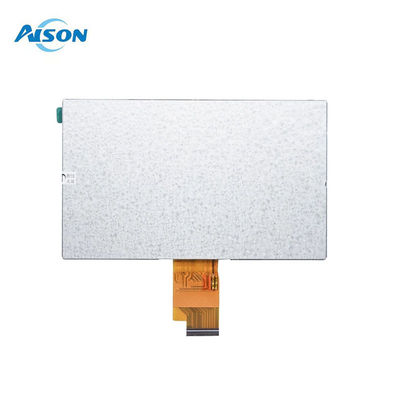

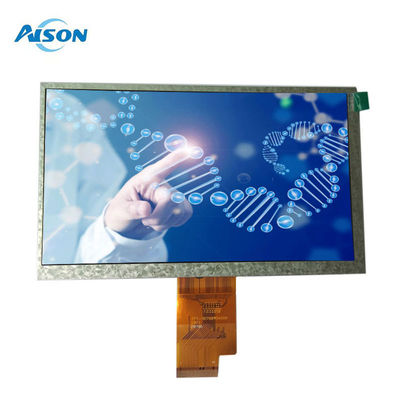

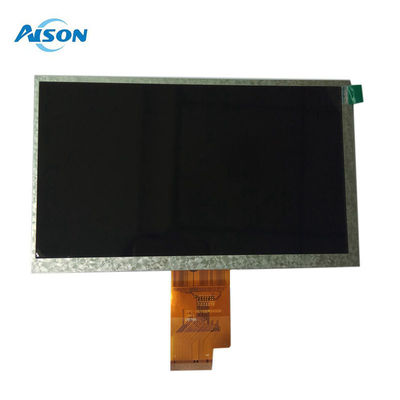

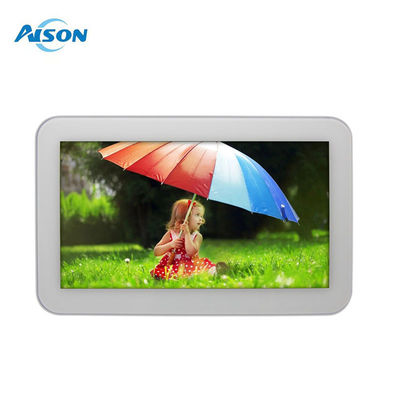

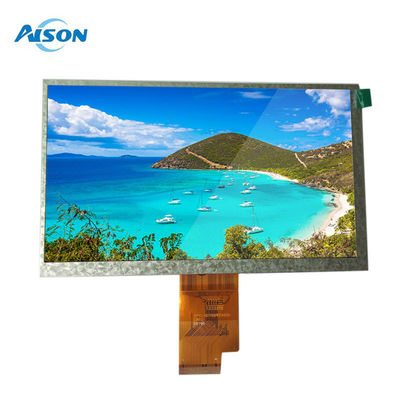

7 inch 1024X600 IPS TFT LCD Display RGB 50 Pin With Capacitive Touch Screen
This 7" IPS TFT LCD display has a high resolution screen with 1024x600 pixels. The built-in IPS technology delivers exceptional image quality with superior color reproduction and contrast ratio at any angle. Also included is a high brightness LED backlight with 400 nits or custom. The super bright backlight allows this TFT to be sunlight readable in bright conditions including direct sun. While this transmissive LCD boasts impressive quality with a 3.3 voltage power supply, it also includes a 10-point multi-touch capacitive touch panel, making it an excellent choice for projects that desire high-end visual output with multi-touch functionality. The PCAP touchscreen with cover glass and built-in USB and I2C interface will allow users to perform various gestures and interact more intuitively with its precise touch recognition and enhanced responsiveness for interactive applications.
This 7 inch RGB TFT Displays Operating temperatures range from -20°C to +70°C, with storage temperatures from -30°C to +80°C. This TFT display model is suitable for various industrial control product applications.
General Data
| Product Name | 7 inch USB TFT Touch Display |
| Resolution | 1024x600 |
| Model Size (W*H*T)mm | 164.9*100*5.1 |
| Display Area (W*H)mm | 154.21 x 85.92 |
| Interface | RGB |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 400 cd/m2 |
| Pin number | 50 pin |
| Contrast Ratio | 700:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
TFT Applications:
This 7-inch IPS tft display module is ideal for various medical and industrial control applications. It is used in medical instruments, diagnostic devices, industrial automation robots, control panels, and maintenance equipment. These 7 inch USB touch displays are integral in presenting diverse medical, control, and maintenance data and information, providing clear, reliable visual output in demanding environments. This makes them essential components in medical and industrial control systems, enhancing both functionality and user experience.
