تفاصيل المنتج:
|
| اسم العرض: | 3شاشة TFT من نوع الشريط بقيمة.9 بوصة | دقة: | 480×128 |
|---|---|---|---|
| البعد المخطط التفصيلي: | 103.20 (ارتفاع) × 34.85 (رأسيًا) × 2.4 (عمقًا) ملم | منطقة نشطة: | 95.04 (أفقي) × 25.34 (رأسي) |
| واجهة: | آر جي بي | وضع العرض: | TFT، أسود عادة |
| اللوم: | 900 د/م2 | عرض الاتجاه: | الكل/IPS |
| درجات حرارة التشغيل: | -20 إلى 70 درجة | درجات حرارة التخزين: | -30 إلى 80 درجة |
| سائق آي سي: | NV3047E | ||
| إبراز: | 3.9 inch bar type LCD display,480x128 resolution TFT module,RGB interface LCD driver IC,480x128 resolution TFT module,RGB interface LCD driver IC |
||

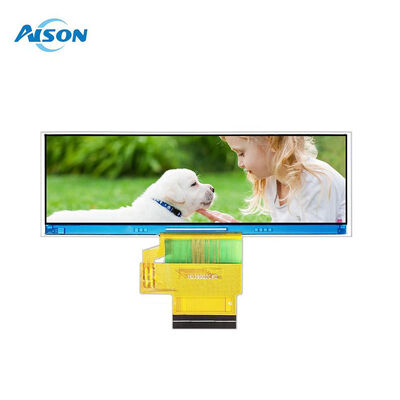

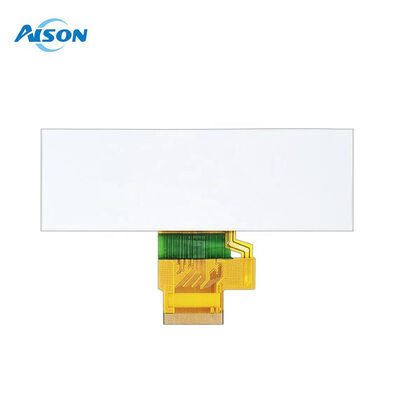

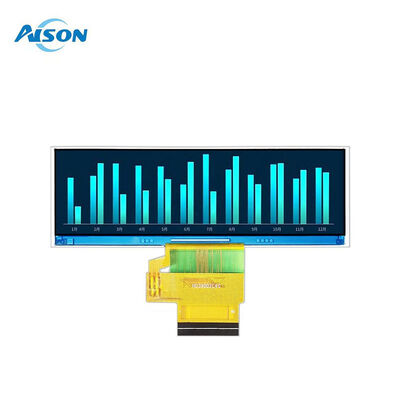

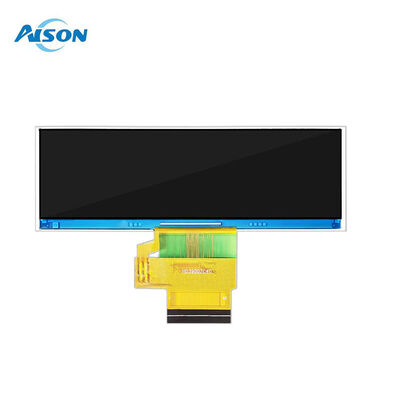

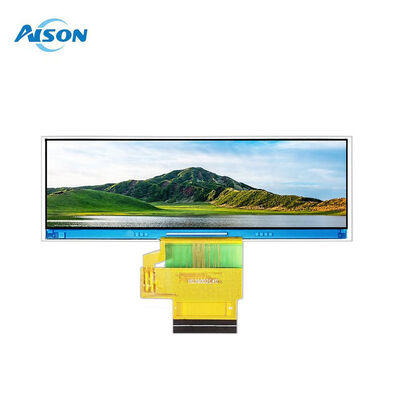

3.9 Inch Bar Type TFT LCD Display Module 480*128 Resolution RGB Interface Driver IC NV3047E
General Description
This is a new 3.9 inch Bar type color landscape IPSTFT LCD display with resolution 480x128 pixels. This 3.9" bar display offers high quality and colorful image; it is especially suitable for server system, audio system and advertising display, auto/aviation/marine equipment, POP, security equipment, Industrial equipment, outdoor intercom systems and control panels, medical equipment, drone controls.
ZHD39001C30-V1 is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. The resolution of 3.9" contains 480 RGB X128 pixels and can display up to 16.7m colors.
This 3.9 inch bar TFT is built in with Driver IC NV3047E it supports RGB interface.This 3.9'' inch TFT LCD module boasts an impressive 900 nits luminance, ensuring crisp and clear visuals in various lighting conditions. Perfect for applications where visibility is crucial.It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
General Data
| Model Name | 3.9 inch Bar LCD Module |
| Resolution | 480x128 |
| Model Size (W*H*T)mm | 103.20 x34.85 x2.4mm |
| Display Area (W*H)mm |
95.04 (H) x 25.34(V)
|
| Interface | RGB |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 900 cd/m2 |
| Pin number | 40 pin |
|
Contrast Ratio
|
1200:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
This 3.9" bar display offers high quality and colorful image; it is especially suitable for server system, audio system and advertising display, auto/aviation/marine equipment, POP, security equipment, Industrial equipment, outdoor intercom systems and control panels, medical equipment, drone controls.
