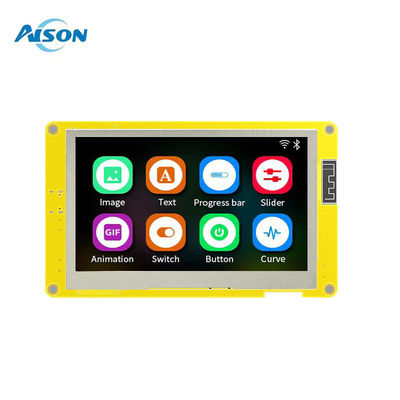

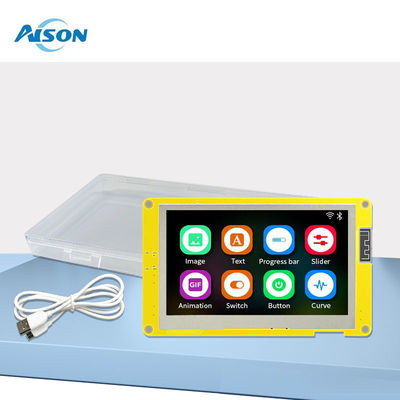

4.3 Inch 800*480 IPS Smart Display WiFI&BT ESP32-S3 HMI 8M PSRAM 16M Flash

ESP32-8048S043C_ I This type of screen is equipped with the ESP32-S3-WROOM-1 module, which can be rapidly developed. This module has powerful functions, WIFI and Bluetooth functions, low power consumption, and can rapidly develop IOT projects. The display screen is a 4.3 inch IPS screen with good display effect. The touch screen is a capacitive touch screen, which adopts the G+G process, the cover plate is sensitive glass, and the touch chip is the GT911 of Huiding, which has stable performance and is widely used in various industrial environments.

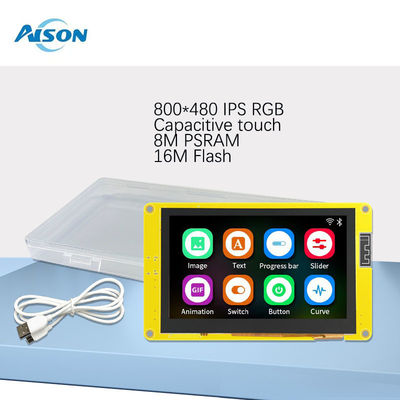

model:ESP32-8048S043C_I

Size:4.3 inch

Resolution:800*480

Touch mode:Capacitive touch

Viewing angle:IPS

Interface mode:16bit RGB

Operating temperature:-20°-70°

Weight:180g

External dimensions:123.0*74.0

Display size:95.04*53.86

Operating voltage:5V

Backlight parameters:6 in parallel and 2 in series

Pin definition:type-c

Introduction

The ESP32 WiFi and Bluetooth chip is the latest generation of Espressif products. It has a dual-core 32-bit MCU, which integrates WiFi HT40 and Bluetooth/BLE 4.2 technology inside.

ESP32-S3-wroom-1 has a significant performance improvement. It is equipped with a high-performance dual-core Tensilica LX7 MCU. One core handles high speed connection and the other for standalone application development. The dual-core MCU has a 240 MHz frequency and a computing power of 600 DMIPS.

In addition, it supports Wi-Fi HT40, Classic Bluetooth/BLE 4.2, and more GPIO resources.

Product description

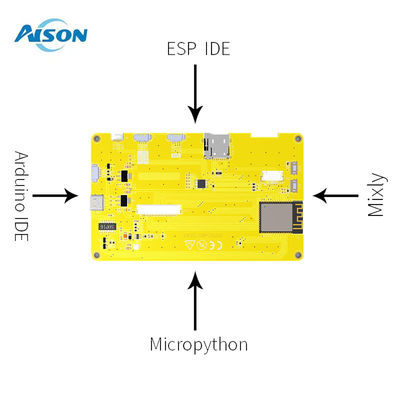

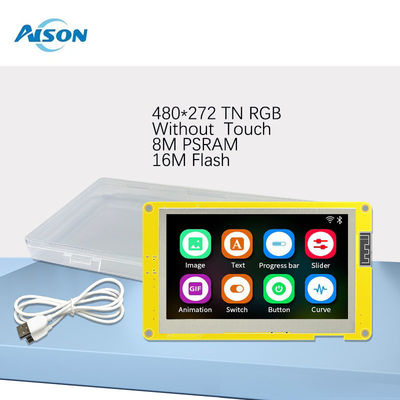

This LCD module uses ESP32-S3-WROOM-1 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can reach 240MHz, 512KB SRAM, 384KB ROM, 8M PSRAM,Flash size is 16MB, The display resolution is 480*272 or 800*480, resistive touch or Capacitive touch. The module includes LCD display screen, backlight control circuit, touch screen control circuit . Reserve the TF card interface ,IO port interface, this module supports development in arduino IDE, ESP IDE, Micropython and Mixly.

Features

●4.3-inch color screen, support 16 BIT RGB 65K color display, display rich colors·

●800X480resolution

●The sample program has been programmed in the factory and can be plugged in

●With TF card slot for easy expansion storage

●Provide arduino library functions and sample programs to facilitate rapid secondary development

●Support one-click download program·

●Military-grade process standards, long-term stable work·
